DL SERIES FLATBED LABEL CONVERTING HOTSTAMP DIE-CUT MACHINE

LABEL CONVERTING

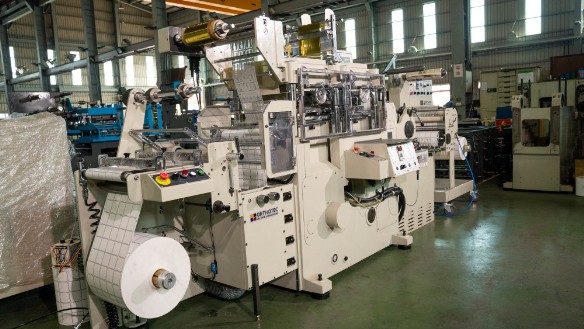

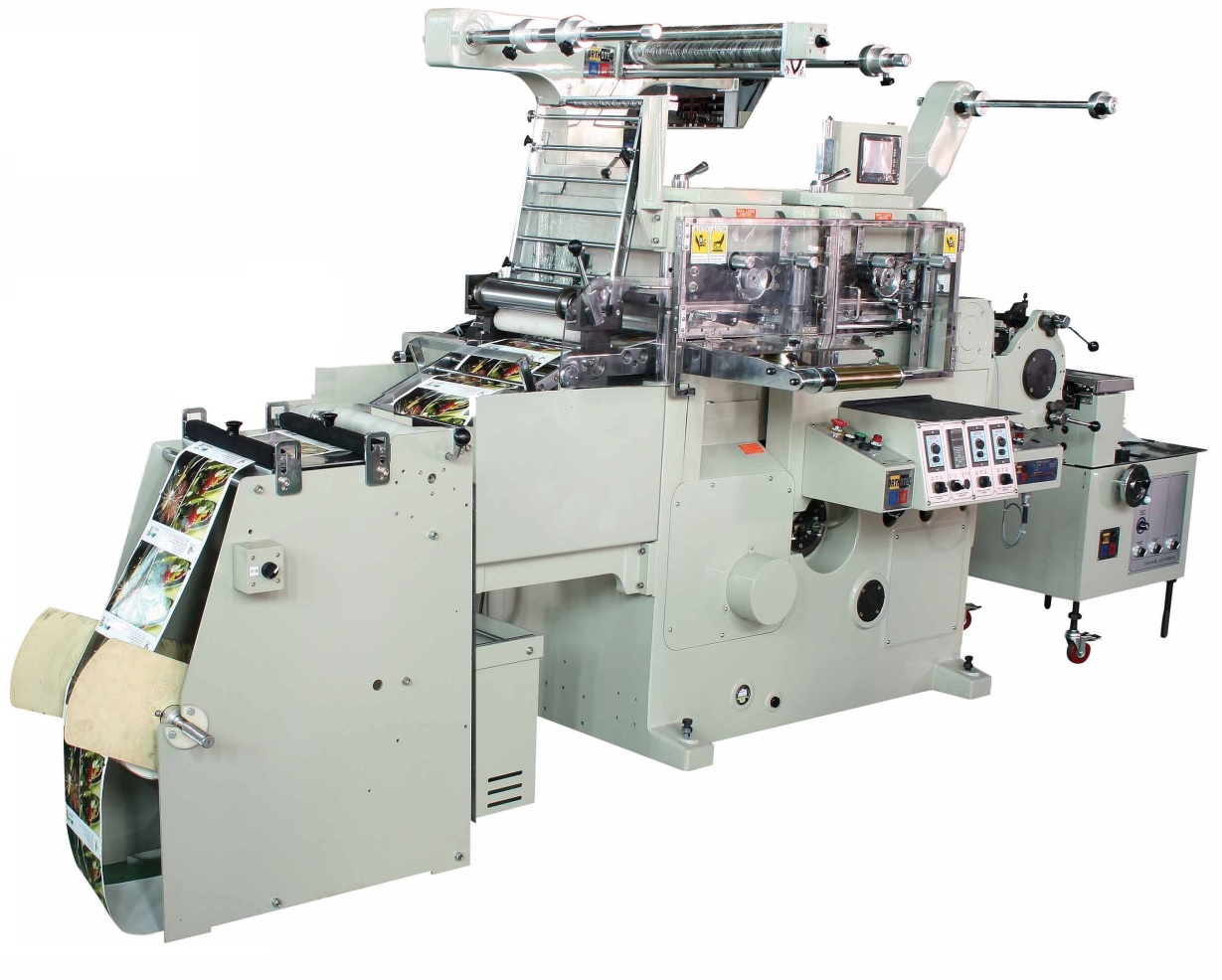

DLS3030 FLAT-BED HOT-STAMP MACHINE
ORTHOTEC 30 years experience dedicates in printing technology to achieve high speed & Multifunctional Flat-bed printing press with sturdy & easy operation mechanical construction and precise printing & converting accuracy.

SPECIAL FEATURES:
400 RPM SUPER HIGH SPEED (OPTIONAL):
400RPM mechanical speed to maximum your production efficiency.
Optional standalone or In-line with flexo printing or semi-rotary offset machine

NON-STOP ADJUSTMENT DESIGN:
Smart Design to adjust angle, along-the-web,across-the-web without stopping production.
40 Tons High Force Flat-bed Converting:
Having super high force to maintain excellent emboss hot-stamp or hot-stamp at high speed.

ORTHOTEC 40 YEARS ROBUST FLAT-BED MECHANICAL DESIGN:
Strong and long duration mechanical design to reach stable operation for long-term use.

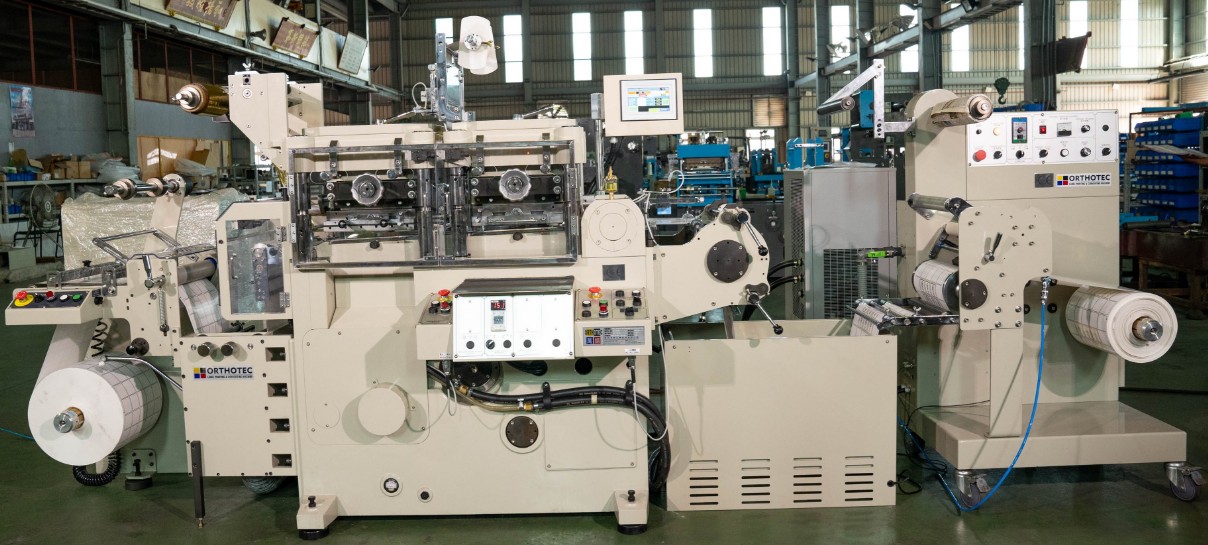

DL SERIES HIGH SPEED FLAT-BED HOT-STAMP MACHINE
MODEL NAME
DL3030 OR DL3022
PAPER WEB WIDTH
300MM
PAPER FORWARD
300MM
MAX. MECHANICAL SPEED
400RPM(Optional), 200RPM (Standard)
MAX. PRINTING AREA
300MM X 300MM (DL3030)
300MM X 220MM (DL3022)
STANDARD FUNCTIONS
Unwinder with Webguider, Flat-bed Hot-stamp station, Flat-bed Die-cut Station, Rewinder with Running Ball waste-off.
NOTES
  1. Real working speed depend from materials, designs, repeat length, skills of operator and etc..
  2. All specifications are subject to change without notice. Please check with your supplier for exact offer.
  3. Specification and features vary by models, and all images might be illustrative for reference only.
*The above specification is for reference only,  the operational speed and width depends on printing length, operator skill, design, job, and many other factors.
*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
