CSL SERIES INTERMITTENT LETTERPRESS

LABEL PRINTING

CSL SERIES - SEMI-ROTARY LETTERPRESS PRINTING PRESS

EASY OPERATION & EXCELLENCE PRINT QUALITY

ORTHOTEC has lifted Intermittent Letter-Press technology into a unprecedented excellent level.

With the newly innovative Inking System, ORTHOTEC CSL SERIES has been highly upgraded the Quality Standard of Letter-Press printing.

FEATURES

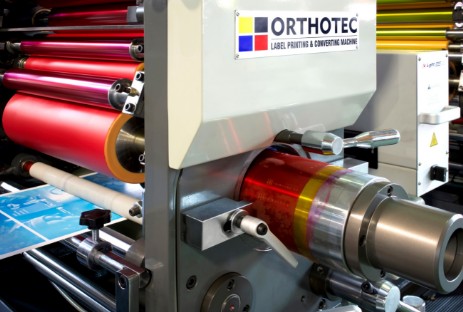

One Step Only to Take Out Printing Cylinder

Without Tool to Save Much Make-ready Time

Solid Cylinder

Better Dot-gain and long duration. Not a simple tube type

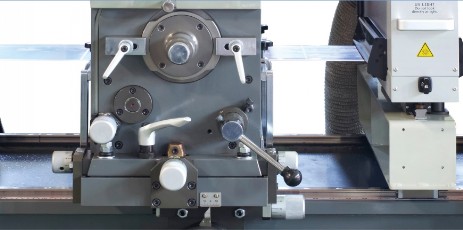

Angle, Pressure, and More Adjustments Without Stopping of Machine

Minimum the wasteage and time for tunning.

Three Sections Inking System

From Ink feeding, kneading, and printing, all are digitalized controlled by motors and controller to ensure good quality printing at different job.

Register Balance System

Achieve precise registration from the begining to the end

ORTHOTEC 30 Years Servo Technology

High registration at higher printing speed and 2nd pass printing

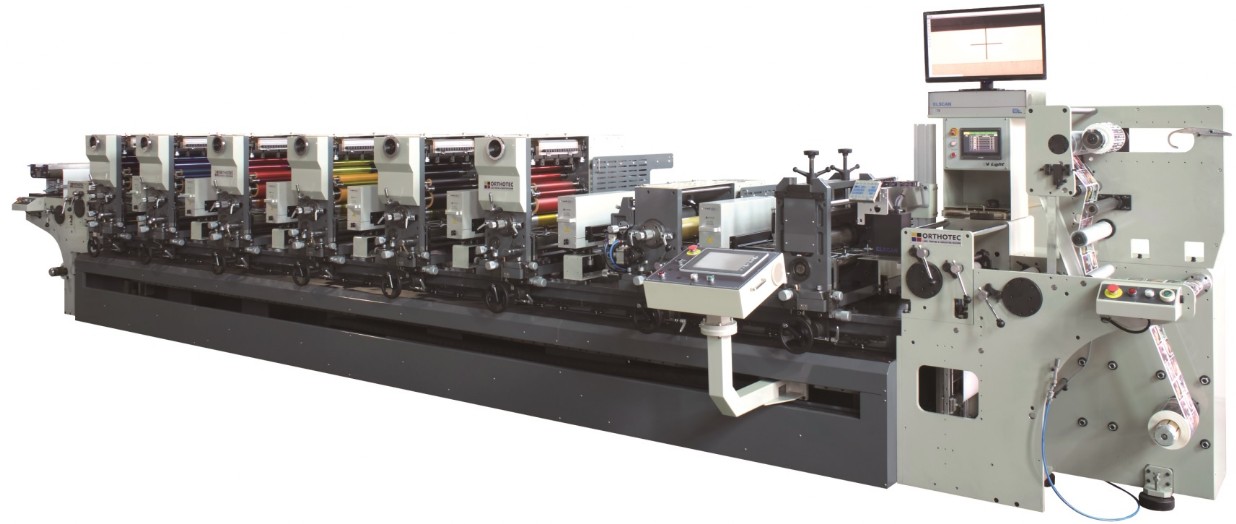

CSL3028 SEMI-ROTARY OFFSET LABEL PRINTING PRESS
PAPER FORWARD	280MM	MAX. MECHANICAL SPEED	200RPM
PAPER WEB WIDTH	310MM	PRINTING STATION NUMBERS	MAX. 9 STATIONS
MAX. PRINTING AREA	MAX. 300MM(W) X 280MM(L)
OPTIONAL FUNCTIONS	Hot /Cold-stamping Unit, Flexo Varnishing Unit, Hybrid (Letter-Press/ Flexo) Printing Unit, Letter-Press Printing Unit, K&B Gap Master Magnetic Rotary Die-Cut Unit , Glue side & Back Side Printing Station, Lamination station with scanner, Embossing Station, Magnetic Rotary Die-cut Station, CPK Flatbed High speed Hot-stamp Station
NOTES	Real working speed depend from materials, designs, repeat length, skills of operator and etc.. All specifications are subject to change without notice. Please check with your supplier for exact offer. Specification and features vary by models, and all images might be illustrative for reference only.

*The above specification is for reference only, the operational speed and width depends on printing length, operator skill, design, job, and many other factors.

*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
