CFT SERIES INTERMITTENT OFFSET

LABEL PRINTING

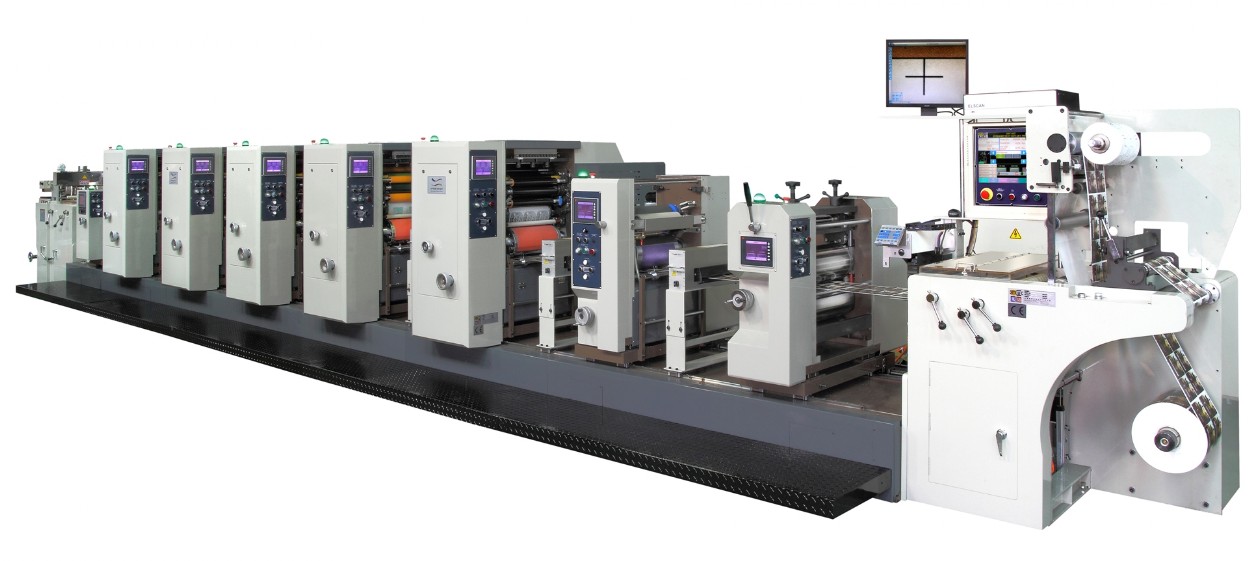

CFT SERIES - ELITE CLASS SEMI-ROTARY OFFSET LABEL PRINTING PRESS
ORTHOTEC presents a High-level OFF-SET INTERMITTENT LABEL PRESS CFT3536 in excellent performance for high quality Labels with consistent printing standard and simple easy Operation, as well as at reasonable budget.

FEATURES

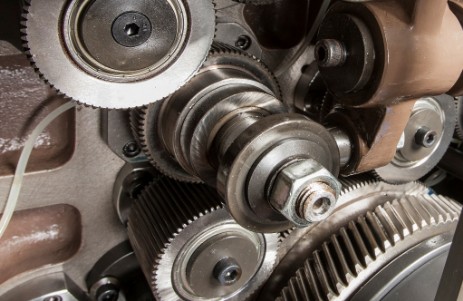

All Mechanical Transmission by Fine Gears

•Give smooth running and long life duration of machines

Register Balance Function

• Achieve the precise Registration from beginning to end of each Impression

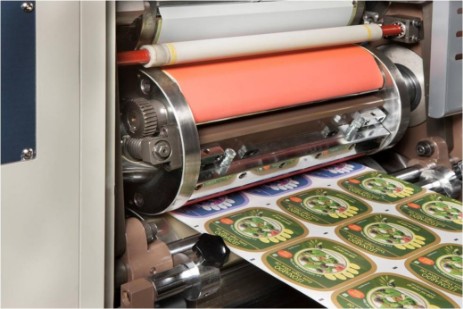

Sophisticated Blanket Clamping

• To have a better dot-gain and time/cost saving, against the way of sticking Blanket

Fine Dampening Adjusting Mechanical Design

• Fine Dampening Adjusting mechanical design to adjust proper water-ink balance

Exclusive & Innovative 4 Sections Inking System

• Reaches a most optimum level of Ink application & Water balance at different speed

DIGITAL INKING TECHNOLOGY (OPTIONAL)

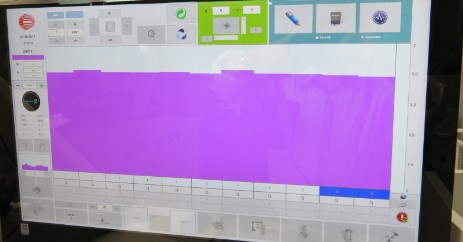

CIP Artwork Analysis & Internet Connection:

• Sending CIP artwork file directly to machine via Ethernet, and auto-analysis to auto-adjust the inking

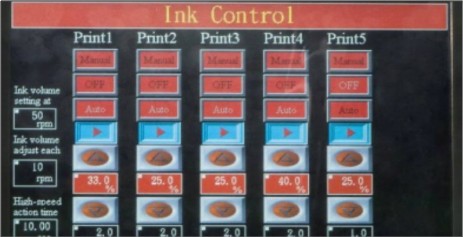

Four Sections Inking Control

• From ink feeding, ink kneading, dampening, and printing cylinders are all controlled by independent motors and servo to reach optimum printing result according to ink file analysis and different printing speed to minimum manually adjustment

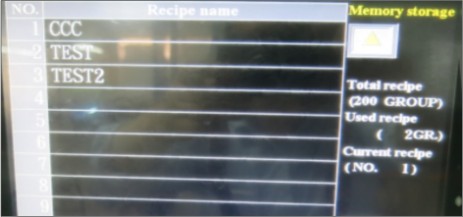

Job Management System

• Easily save all adjustment into computer for repeat jobs

SPECIFICATION

CFT3536 SEMI-ROTARY OFFSET LABEL PRINTING PRESS
PAPER FORWARD	350MM	MAX. MECHANICAL SPEED	200RPM
PAPER WEB WIDTH	340MM	PRINTING STATION NUMBERS	MAX. 10 STATIONS
MAX. PRINTING AREA	MAX. 330MM X 350MM
OPTIONAL FUNCTIONS	Hot /Cold-stamping Unit, Flexo Varnishing Unit, Hybrid (Letter-Press/ Flexo) Printing Unit, Letter-Press Printing Unit, K&B Gap Master Magnetic Rotary Die-Cut Unit , Glue side & Back Side Printing Station, Lamination station with scanner, Embossing Station, Magnetic Rotary Die-cut Station, CPK Flatbed High speed Hot-stamp Station, Flat-bed Hot-stamp, Flat-bed Screen Printing
NOTES	Real working speed depend from materials, designs, repeat length, skills of operator and etc.. All specifications are subject to change without notice. Please check with your supplier for exact offer. Specification and features vary by models, and all images might be illustrative for reference only.

*The above specification is for reference only, the operational speed and width depends on printing length, operator skill, design, job, and many other factors.

*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
