FLX/ CSL SERIES SEMI-ROTARY FLEXO OR LETTERPRESS LABEL PRINTING PRESS

LABEL PRINTING
FLX/ CSL SERIES -  SEMI-ROTARY FLEXO OR LETTERPRESS PRINTING PRESS
EASY OPERATION & EXCELLENCE PRINT QUALITY
ORTHOTEC has lifted Intermittent Letter-Press technology into a unprecedented excellent level.
With the newly innovative Inking System, ORTHOTEC CSL SERIES has been highly upgraded the Quality Standard of FLEXO or Letter-Press printing.

FEATURES

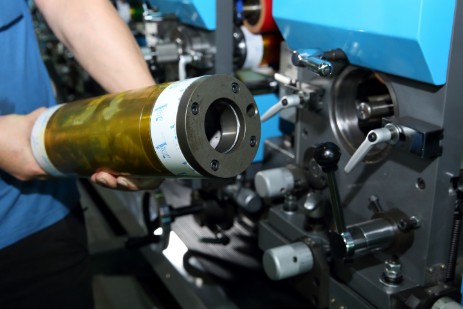

One Step Only to Take Out Printing Cylinder
  • Without Tool to Save Much Make-ready Time

Solid Cylinder
  • Better Dot-gain and long duration. Not a simple tube type

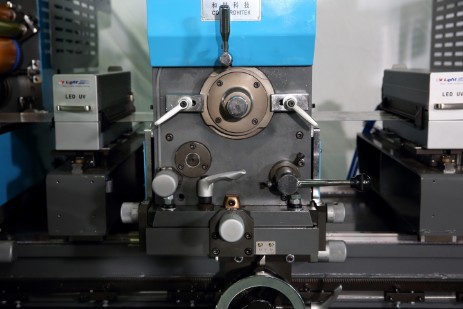

Angle, Pressure, and More Adjustments Without Stopping of Machine
  • Minimum the wasteage and time for tunning.

Three Sections Inking System For Letterpress System
  • From Ink feeding, kneading, and printing, all are digitalized controlled by motors and controller to ensure good quality printing at different job.

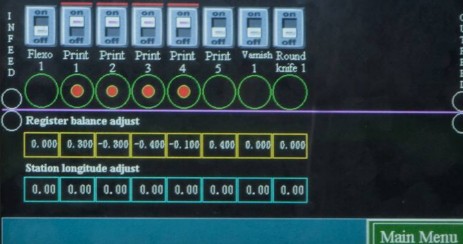

Register Balance System
  • Distortion adjust to achieve precise registration from the begining to the end

ORTHOTEC 30 Years Servo Technology
  • High registration at higher printing speed and 2nd pass printing




Fast Changing Over. No Need to Change Cylinder and Any Size Printable for Flexo System
  • Semi-rotary flexo is most ideal for medium run and companion with digital or full rotary flexo


All Converting in One Line, No Turn Bar for Glue Side, Fast Multilayers Label Converting
  • Fast and simple glue side, delamination, relamination, multilayers, and all converting in one line to reduce converting time and waste

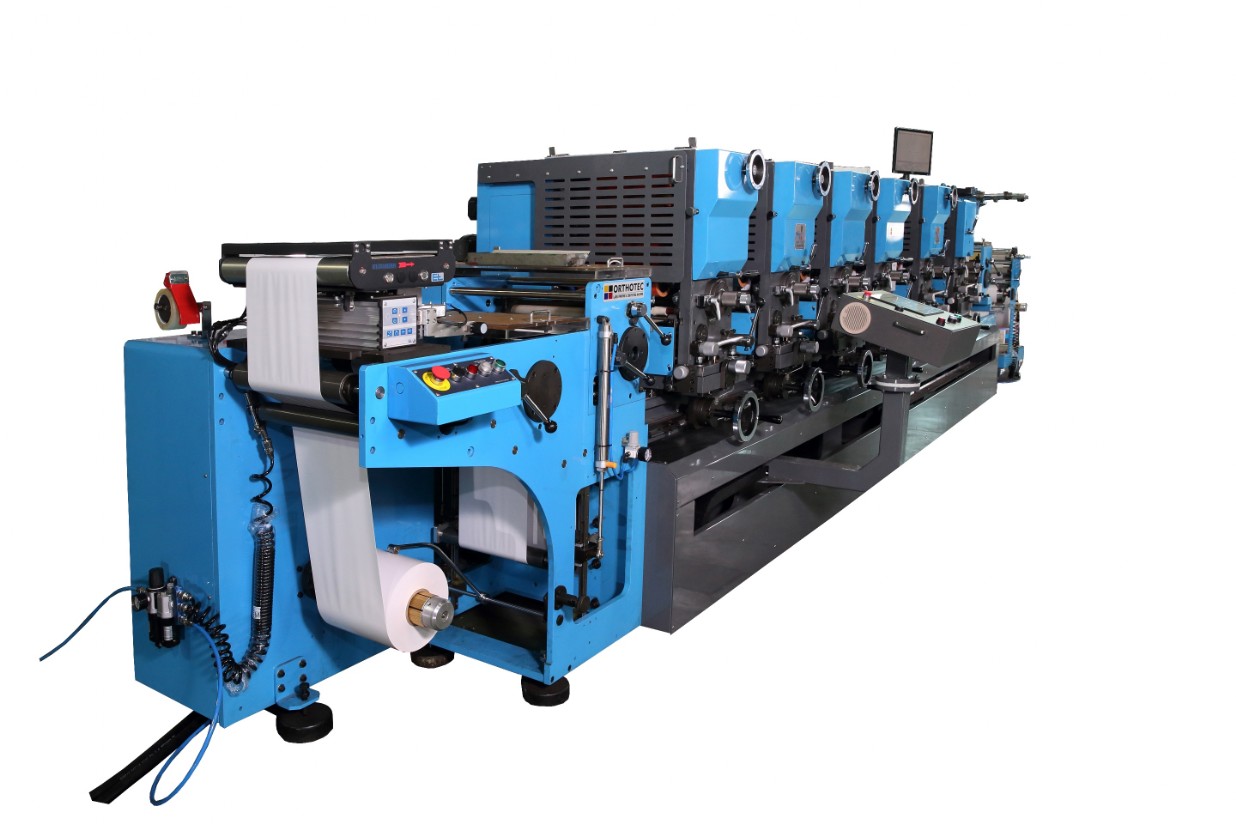

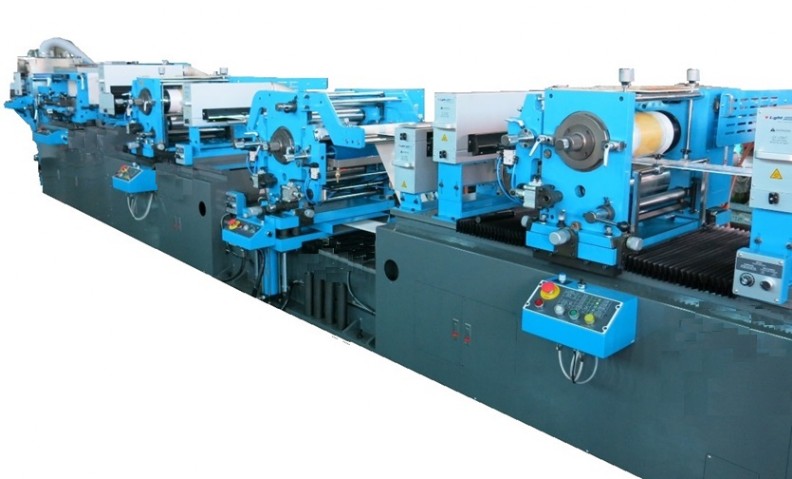

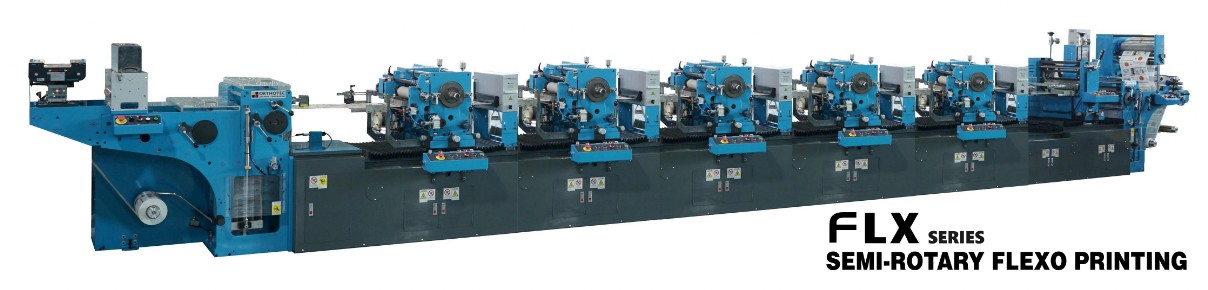

FLX / CSL SERIES SEMI-ROTARY FLEXO OR LETTERPRESS LABEL PRINTING PRESS
PAPER FORWARD
280MM
MAX. MECHANICAL SPEED
200RPM
PAPER WEB WIDTH
310MM
PRINTING STATION NUMBERS
MAX. 9 STATIONS
MAX. PRINTING AREA
MAX. 300MM(W) X 280MM(L)
OPTIONAL FUNCTIONS
Hot /Cold-stamping Unit, Flexo Varnishing Unit, Hybrid (Letter-Press/ Flexo) Printing Unit, Letter-Press Printing Unit,  K&B Gap Master Magnetic Rotary Die-Cut Unit , Glue side & Back Side Printing Station, Lamination station with scanner, Embossing Station, Magnetic Rotary Die-cut Station, CPK Flatbed High speed Hot-stamp Station
NOTES
  1. Real working speed depend from materials, designs, repeat length, skills of operator and etc..
  2. All specifications are subject to change without notice. Please check with your supplier for exact offer.
  3. Specification and features vary by models, and all images might be illustrative for reference only.
*The above specification is for reference only,  the operational speed and width depends on printing length, operator skill, design, job, and many other factors.
*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
