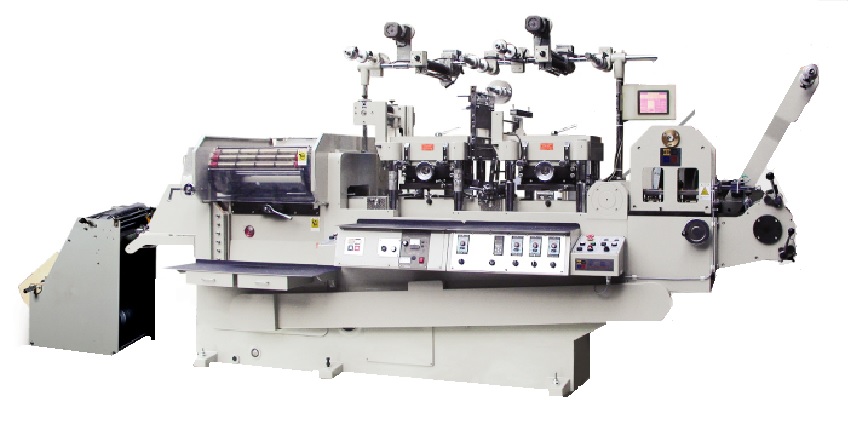

CN SERIES LABEL PRINTING PRESS

LABEL PRINTING
CN SERIES -  Sturdy & Trusted Build / High Speed & Multifunctions
ORTHOTEC 30 years experience dedicates in printing technology to achieve high speed & Multifunctional Flat-bed printing press with sturdy & easy operation mechanical construction and precise printing & converting accuracy.
Exclusive 3 Rollers-Set Design:
Brings Non-ghosting & Thicker Ink than 2 Rollers-set of other Machines
Unique Non-stop Angle & Pressure Adjustment Design
Patented Computer Sprocket Puncher
  • High Speed: Special Oblique design gives perfect registration and smooth running at 9000 impression per hour
  • Enhanced Mechanical design to ensure a stable Die-cut with Knife length up to 2 meters
  • A precise moving stroke gives a easier set-up of printing pressure and color even
  • Air-suction design makes paper-forwarding move smooth and stable
  • 3 pieces in one set of ink applying rollers gives a excellent inking application
  • CN2850 SUPER POWER Motor driven: The largest Flat-bed machine in the world. The Super Large Size creates Super Power to dominate the market

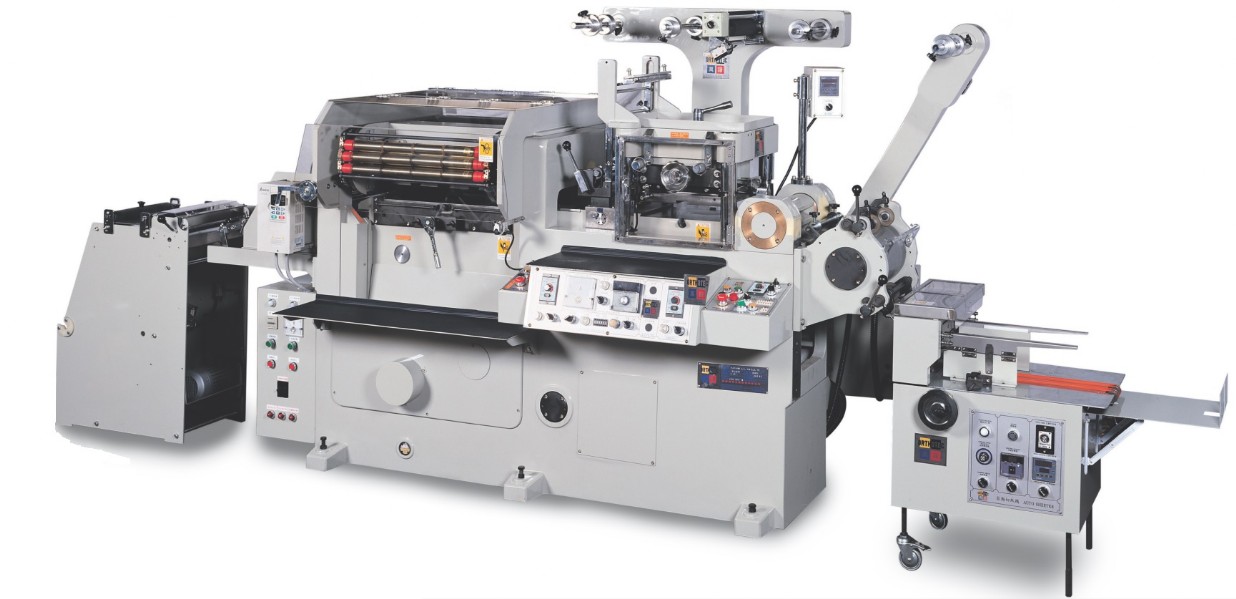

CN SERIES FLAT-BED PRINTING MACHINE
MODEL NAME
CN250 OR CN2850
CHASE DIMENSION
200X300/ 250X400/ 270X600
Max. Paper width
300mm
Max. Printing Area
Depends on size of chase and area of printing
STANDARD FUNCTION
Unwinder, 3or 4 Color Printing, Laminate, Die-cut, Waste-off, Touch Screen System with Scanner for 2nd Pass, and Table Rewinder
OPTIONAL FUNCTIONS
Sheeter, Hot-stamp at Half of Die-cut Station, UV Dryer, SLT300 Slitter, A2 SIZE (44 X 62CM) Plate Making Machine (3 EXPOSURE/WASHER/DRIER in one),Computer Sprocket Puncher
NOTES
  1. Real working speed depend from materials, designs, repeat length, skills of operator and etc..
  2. All specifications are subject to change without notice. Please check with your supplier for exact offer.
  3. Specification and features vary by models, and all images might be illustrative for reference only.
*The above specification is for reference only,  the operational speed and width depends on printing length, operator skill, design, job, and many other factors.
*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
